product
NMR Permanent Magnet
PM1055
A secondary field reference for NMR testing and Hall teslameters calibration.
-
product
Brushless Permanent Magnet Alternators
NoBrush 400 Hz alternators provide excellent voltage stability, eliminating the need for further regulation in most applications. These Brushless Permanent Magnet Alternator Generators respond quickly to significant load changes, and produce an output waveform free from sharp peaks and spikes. EMI generation is very low; in most instances, it may be considered zero.
-
product
Magnet Testing
RMP Rotor Measuring Station
The RMP Rotor Measuring Station is a universal measuring system for the precise measurement and quality control of multi-pole permanent magnet rotors.
-
product
Magnet Testing
m-axis
m-axis is a measurement system that can be used to characterize permanent magnets in terms of their magnetic specifications (magnetic moment and magnetization angle) with high precision. In addition to the four standard measuring ranges, the modular design allows the system to be adapted to customer-specific requirements. The measurement systems can be used for 100% in-line quality control via our m-axis I/O module.
-
product
Hall Effect Magnet Kit
Permanent magnet - Neodium materials - +/- 0.03Tesla deviation can be made in a process of assembling magnet. - However, we indicates correct tesla strength measured by gaussmeter, before shipping magnet kit.
-
product
Magnet Temperature Characteristics Apparatus
TDF
Evaluation of thermal stability of varieties of permanent magnets including rare-earth permanent magnet. TDF-5-200auto This apparatus automatically measures and analyzes reversible temperature coefficient(a) and irreversible temperature coefficient (Flux loss ?f) of magnetic flux density of rare-earth permanent magnet in the wide range from low to high temperature.
-
product
Hall Effect Proximity Switches/Sensors
ChenYang Technologies GmbH & Co. KG
A Hall Effect proximity switch is a non-contact electronic switch, which consist of a permanent magnet or ferromagnetic part as trigger intermediary and a Hall Effect sensor IC. The Hall sensor IC detects the change of the magnet field when the permanent magnet comes in the close proximity to it and generates an electric signal. This signal is amplified and rectified to control the output signal of the switch.
-
product
High-Dynamics PIMag Linear Stage
V-522 • V-524 • V-528
Physik Instrumente GmbH & Co. KG
Reference-class linear stage. Linear positioning stages with magnetic direct drives largely dispense with mechanical components in the drivetrain and the drive force acts directly on the motion platform. Together with precision bearings, a high travel accuracy and longer lifetime is achieved. The linear positioning stages are particularly suitable for scanning applications. PIMag® Voice Coil. Voice coil drives consist of 2 essential components: A permanent magnet and a coil, which is located in ...show more -
product
Hysteresigraph
Model HG-700
The Model HG-700 is a computer-automated, magnetic Hysteresigraph system for measuring the magnetization and demagnetization curves on all types of permanent magnet materials including: hard ferrite, rare earth-cobalt, Nd-Fe-B (Neo), and bonded magnets.
-
product
MM-Wave Sources From 36 To 178 GHz Based On BWO
Insight Product Company offers a BWO based MM-wave sources of radiation at frequencies from 36 Ghz to 178 Ghz. Each source includes millimeter-wave BWO tube and a specially designed permanent magnet system. BWO tube is installed inside the permanent magnet and does not require any adjustment by the customer. Offered sources are the most wide-banded, they are very reliable, small sized, powerful and easy to operate.
-
product
Non-Contact Type Magneto-Electric Rotation Detector
MP-9820
MP-9820 is a magneto-electric-rotation detector using an internal hall element, a permanent magnet, DC amplifier, and voltage regulator in its compact body. Using MP-9820 in combination with detection gear enables deriving stable rectangular waveform from ultra low speed all the way through high speed. (1 Hz to 100 kHz)MP-9820 finds wide range of applications and rotational measurement objects by using with TM-3100 series tachometer and FV-1500 FV converter.
-
product
Non-Destructive Subsurface Layer Profiling
NMR-Mouse one-sided NMR
The unique, powerful Profile NMR-MOUSE® probe works hand-in-hand with the Kea2 spectrometer. The Profile NMR-MOUSE is a portable, open NMR sensor equipped with a novel permanent magnet geometry that generates a flat sensitive volume parallel to the scanner surface. The system can measure *Proton density as a function of depth *T2 NMR relaxation times *T1 NMR relaxation times *Self-Diffusion coefficient of liquids
-
product
Non Destructive Testing (NDT)
NDT covers a wide group of testing techniques used to evaluate the properties of a material, part, product, weld or system without causing damage. NDT carried out at KLL includes:Liquid Penetrant Testing (LPT) is used for the detection of surface breaking discontinuities on magnetic and non-magnetic metallic materials.Fluorescent and colour contrast penetrants are available to be used in the following methods:-Water washableSolvent removablePost emulsifiableMagnetic Particle Inspection (MT/MPI)...show more -
product
Orotron (High-Power BWO) Based Sources 120 To 370 GHz
Insight Product Company offers Orotron based sources of radiation at frequencies 120 to 370 GHz. The Oroton tube is installed inside the permanent magnet and does not require any adjustment by the customer. The Orotron sources are wide-banded, small in size, very reliable, powerful, and easy to operate. We offer phase-locking as an option on our Orotron based sources to maximize the phase and frequency stability.
-
product
Alternators
Ducati Energia alternators are permanent magnets generators available in a power range of 60 W – 5.000 W and diameter between 95 mm and 180 mm.
-
product
Ammeter
AC Rectifier Type Coil Meter
measures the alternating voltage and current with the help of rectifying elements and permanent magnet moving coil type of instruments. However the primary function of rectifier type of instruments work as voltmeter. Now one question must arises in our mind why we use rectifier type of instruments widely in the industrial world though we have various other AC voltmeter like electrodynamometer type instruments, thermocouple type instruments etc? The answer to this question is very simple and is written as follows.
-
product
Ammeter
DC Moving Coil Meter
It uses magnetic deflection, where current passing through a coil placed in the magnetic field of a permanent magnet causes the coil to move.
-
product
Angle Sensors
Angle sensors of the PRAS/PRDS series are based on a contact-free and absolute measurement principle. The position sensing element is a permanent magnet.
-
product
Armature Tester
Qingdao AIP Intelligent Instruments Co., Ltd
This tester is suitable for online or offline detection of various armature electrical properties, such as power tool motors, garden tools, vacuum cleaner motors, small household appliance motors, automobile motors, fitness equipment motors, permanent magnet micro-motors, etc. The tooling of the tester meets the requirements of arbitrary placement of the armature, and can automatically and accurately sort/track faulty solder joints; the equipment startup methods include buttons, remote control, ...show more -
product
ASTRO BRUSHLESS MOTOR
4535
The purpose of the development of the 4535 was to deliver the same quality and reliability of our 32XX motors but at nearly 4x the power. Starting at the core of the motor, the 4535 uses the highest grade of sintered samarium-cobalt magnet. Unlike hobby grade neodymium magnets, these samarium-cobalt magnets are able to withstand high operating temperatures without losing magnetic strength or experiencing permanent demagnetization. Ultra-thin laminations are used in the stator to ensure minimal i...show more -
product
Automatic Hysteresis Graph Test System
DX-4DMT
X-4DMT automatic hysteresigraph system accords with the standard permanent magnet test system, GB3217-92, used to measure the major and minor hysteresis loops, demagnetization curves, recoil hysteresis loops and initial magnetization curves in different temperature of ferrite, AlNiCo, SmCo, NdFeB and quenched material, and gives the magnetic parameter, Br, Hcb, Hcj, (BH)max, Hk and so on, and could meet different requirements on test function, precision, power capability, reliability, efficiency, price, local environment from laboratory to enterprise's production line.
-
product
Calibration & Demag.
Model 990A/990C
The Model 990 Series Magnetreaters® are highly accurate, pulse type, ringing demagnetizers (also called treaters) for the controlled stabilization of permanent magnets and permanent magnet assemblies. Regardless of line voltage stability, they provide a controlled output through continuous pulse amplitude regulation. Treating voltage is variable from 0 to 600 VDC. Additional energy can be added to the Model 990 Series by interconnecting a Model 992 Energy Booster. The energy level is increased from 18 to 36 watt-seconds. With this option, treating coils will produce higher demagnetizing fields and lower ringing frequencies, which can provide greater field penetration in some applications.
-
product
CW (Continuous Wave) Magnetrons For Industrial Microwave Heating
Insight Product offers CW magnetrons models for industrial and commercial microwave heating, the frequencies 915 MHz and 2450 MHz with output power up to 100 kW. We offer these CW Magnetrons together with accompanying solenoids, based on Permanent magnet or Electro-Magnet depending on model.
-
product
DC Coreless Motor
Adamant Namiki Precision Jewel Co Ltd.
There is a structure in the cage shape by only the copper wire turns around a cylindrical permanent magnet placed inside It is a feature. There There is not an anron core, it does not receive the action of the copper basket type rotor is light, the moment of inertia becomes small, so quick response is possible. A Permanent Magnet, There Is No Cogging, That Is, Rotation Is Smooth, And Vibration And Noise Can Be Reduced. - Since Rare Earth Magnets With High Magnetic Properties Are Used And The Rotor Is Formed Only With Coils, The Motor Itself Can Be Made smaller and lighter.
-
product
D.C. Recording Fluxmeter
TRF
This is the equipment being able to measure direct current magnetization property of wide-ranging magnetic materials from soft magnetic materials to high performance permanent magnet with magnetic flux meter based on M integral closed magnetic circuit system.
-
product
Electrodynamic Shaker Systems
Electrodynamic shaker systems and amplifiers from MB Dynamics help to support a wide range of general-purpose vibration test requirements. The electrodynamic shaker systems are offered in a variety of force ranges, from 100N (25 lbf) to 22kN (5,000 lbf). The innovative design of MB Dynamics PM-Series electrodynamic shakers incorporates permanent magnet technology and the voice coil principle to create vibration. These heavy-duty electrodynamic shakers feature a robust design for maximum reliabil...show more -
product
Elevator Drives
User friendliness is the emphasis of our drives. The keypad interface and programming are dedicated to elevator and escalator applications. The performance features are well-suited for both Induction and Permanent Magnet motors with the latest control functions.
-
product

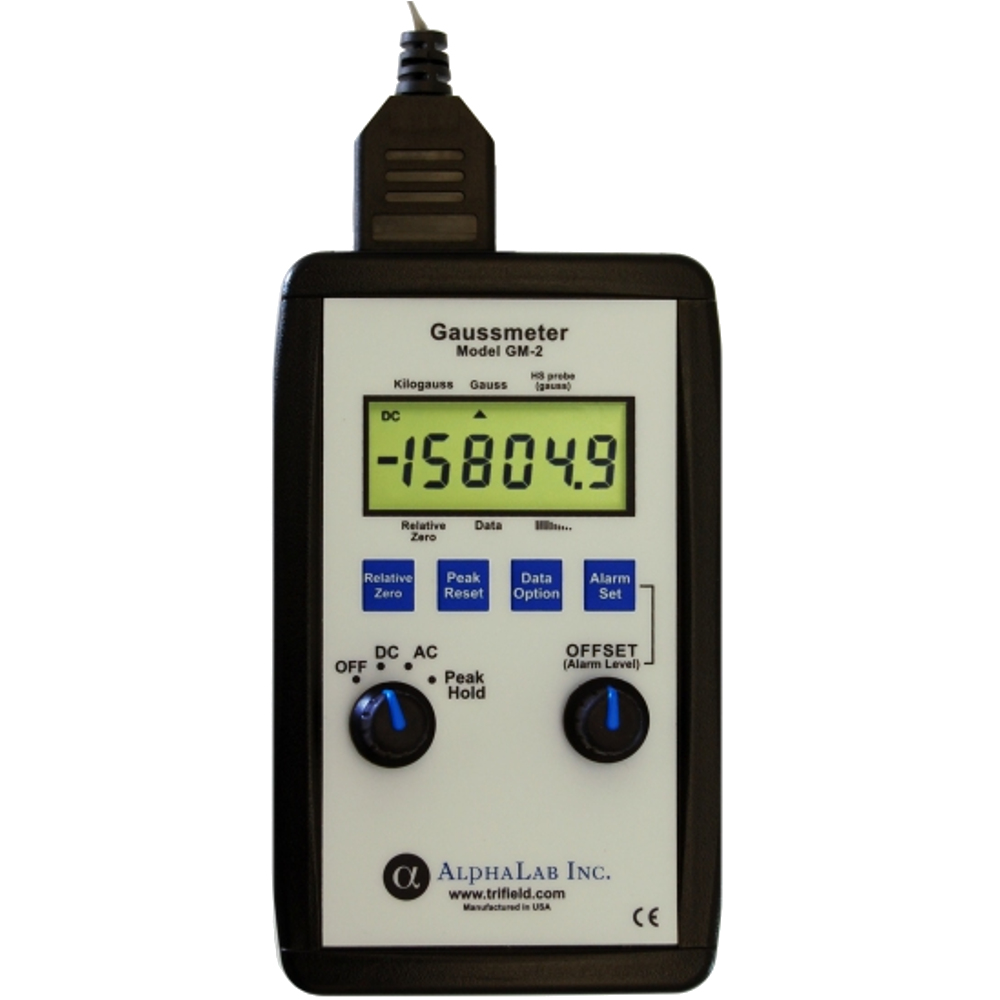

Gaussmeter
GM2
The Model GM2 Measures the strength and polarity of magnetic field up to 30kG when using a standard probes, or 800 gauss (resolution 0.01 gauss) if an HS probe is used. Functions include DC, AC and peak hold along with a user-adjustable alarm which has three modes of operation. DC background field can be subtracted out either by pressing "Relative Zero" or by manually adjusting the offset. The meter includes battery, AC adapter analog output jack and calibration certificate. If a standard probe ...show more -
product
Gauss Meters
A gauss meter displays electromagnetic wave measurements in Gauss (G), milliGauss (mG), milliTesla (mT) or microTesla (µT) units. A gauss meter can detect either static (DC) permanent (rare-earth) magnetic or dynamic (AC) electromagnetic fields (EMFs), or both. Thus, it is important to review the specifications of a gauss meter prior to purchase to ensure suitability for the intended application.Neodymium (NdFeB) permanent magnets are among the world's strongest and most widely used magnets. Whe...show more -
product
Standard Helmholtz Coils
Helmholtz Coils are ideal for the measurement of Rare Earth (Samarium Cobalt, Neodymium) and Hard Ferrite permanent magnet materials (materials which exhibit a relative straight line demagnetization). Our standard Helmholtz Coils are for use with fluxmeters. The Helmholtz Coil measures the magnet sample as a single magnetic moment provided that the longest dimension of the magnet sample is less than one-third (1/3) the diameter of the coil system. By definition, the magnetic moment per unit volu...show more
